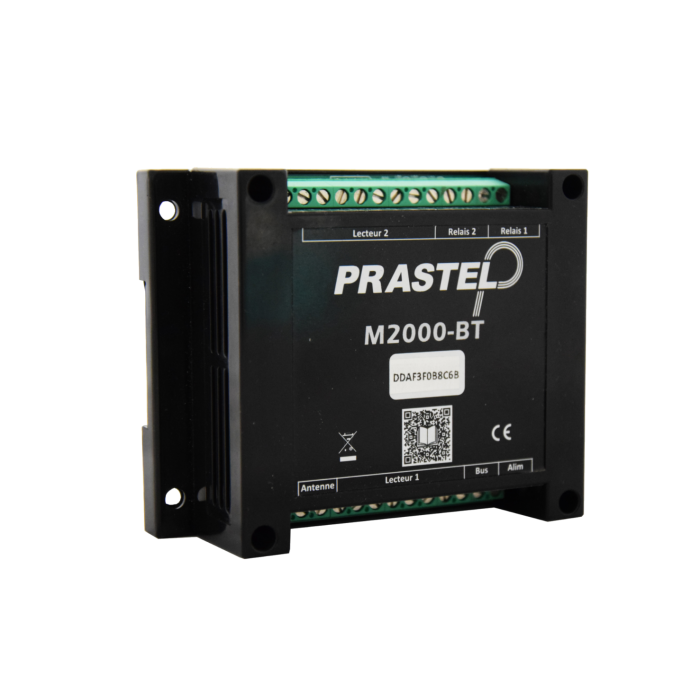

Prastel M2000BT Access Control Unit for 2000 users

New Prastel M2000BT Access Control Unit for 2000 users

Access control unit fi tted with 2 inputs for external readers M2000PE has the same functions as the M1000E control unit , with the addition of separate relay control and adjustable times for each relay., memory partitioning and antipassback. The M2000PE has an inbuilt 22 channel 433MHZ receiver which may be set to receiver channels 1 to 4. The unit also offers a transfer facility to allow transfer of programmed data to another M2000PE control unit connected through a RS485 serial line.

  • 2000 users
  • 2 inputs for reader + RF input (parallel output)
  • 2 relay outputs 5A, activated with readers or remote controls 433.920 MHz
  • 433.920 MHz receiver integrated for radio transmitter
  • integrated keypad for programming
  • users memory management with GTSYSTEMXPWINGTSYSTEM
  • ABS box for internal use on DIN rail
  • REX inputs for both doors
Technical
IP Rating44
Unit power supply (Vac)12-24 Vac/dc

Write a review

Please login or register to review
  • Views: 13791
  • Brand: Prastel
  • Product Code: M2000PE
  • Dispatched: 1-2 Working Days
. . . .
